Creating Custom Master Pages for Sharepoint 2010 and Visual Studio


In this post I am going to try to show step by step how to DEPLOY a master page with visual studio by using a feature. This feature can be activated and deactivated from anywhere programmatically…for example what about changing the master page by checking the local weather? it is a stupid example but this gives you the scope of what we can do with this simple code.

- Step 1

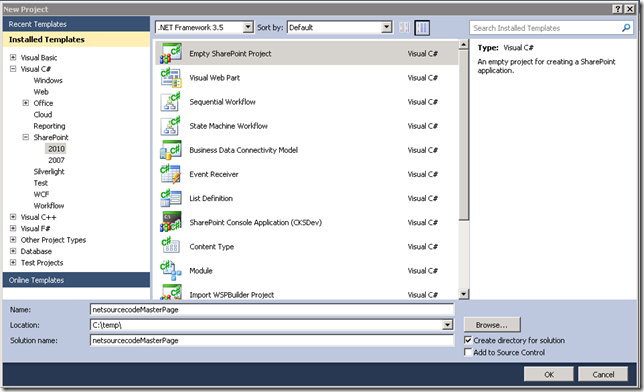

Go to Visual Studio 2010 and create a new empty project and call it netsourcecodeMasterPage:
master1

- Step 2
Select deploy to farm and click next:
master2
- Step 3
Go to your project, right click and add new item, select Module from the Sharepoint 2010 templates menu and call it MasterPageModule.
master3
- Step 4
Go to the sample.txt file, just below elements.xml, open it, remove everything inside the file and copy and paste this master page code:
master4
<%@ Master language="C#" %>


<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">


<%@ Import Namespace="Microsoft.SharePoint" %>


<%@ Register Tagprefix="Meetings" Namespace="Microsoft.SharePoint.Meetings" Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>


<%@ Register Tagprefix="SharePoint" Namespace="Microsoft.SharePoint.WebControls" Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>


<%@ Register Tagprefix="WebPartPages" Namespace="Microsoft.SharePoint.WebPartPages" Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>


<%@ Register TagPrefix="wssuc" TagName="Welcome" src="~/_controltemplates/Welcome.ascx" %>


<%@ Register TagPrefix="wssuc" TagName="DesignModeConsole" src="~/_controltemplates/DesignModeConsole.ascx" %>


<%@ Register TagPrefix="wssuc" TagName="MUISelector" src="~/_controltemplates/MUISelector.ascx" %>


<html xmlns="http://www.w3.org/1999/xhtml" lang="<%$Resources:wss,language_value %>" dir="<%$Resources:wss,multipages_direction_dir_value %>" runat="server">


<head runat="server">




    <meta http-equiv="Content-Type" content="text/html; charset=utf-8"/>


    <meta http-equiv="Expires" content="0"/>


    <meta http-equiv="X-UA-Compatible" content="IE=8"/>





    <!-- robots -->


    <SharePoint:RobotsMetaTag runat="server"/>





    <!-- page title - overridden by asp:content on pages or page layouts -->


    <title runat="server"><asp:ContentPlaceHolder id="PlaceHolderPageTitle" runat="server">SiteName</asp:ContentPlaceHolder></title>





    <!-- favicon -->


    <SharePoint:SPShortcutIcon runat="server" IconUrl="/Style Library/sitename/favicon.ico"/>





    <!-- all OOTB css -->


    <SharePoint:CssLink runat="server" Version="4"/>


    <SharePoint:CssRegistration Name="mws.css" runat="server"/>


    <SharePoint:Theme runat="server"/>





    <!-- page manager interacts with script and the sharepoint object model -->


    <SharePoint:SPPageManager runat="server"/>





    <!-- unified logging service -->


    <SharePoint:ULSClientConfig runat="server"/>





    <!-- identifies to scripting elements that this is a v4 master page. required for scrolling? -->


    <script type="text/javascript">


        var _fV4UI = true;


    </script>





    <!-- load SharePoint javascript -->


    <SharePoint:ScriptLink language="javascript" Defer="true" runat="server"/>





     <style type="text/css">


        /* fix scrolling on list pages */


        #s4-bodyContainer {


            position: relative;


        }




        /* hide body scrolling (SharePoint will handle) */


        body {


            height:100%;


            overflow:hidden;


            width:100%;


        }





        /* popout breadcrumb menu needs background color for firefox */


        .s4-breadcrumb-menu {


            background:#F2F2F2;


        }




        /* if you want to change the left nav width, change this and the margin-left in .s4-ca */


        body #s4-leftpanel {


            /* width:155px; */


        }





        /* body area normally has a white background */


        .s4-ca {


            background:transparent none repeat scroll 0 0;


            /* margin-left:155px; */


        }


    </style>





    <!-- link to our custom css  -->


    <SharePoint:CssRegistration name="/Style Library/sitename/style.css" After="corev4.css" runat="server"/>





    <!-- javascript to override the active-x message in ie


        // See http://blog.drisgill.com/2010/02/removing-name-activex-control-warning.html for more info


        // Remove if the IM pressence icons are needed in SharePoint


    -->


    <script type="text/javascript">


        function ProcessImn(){}


        function ProcessImnMarkers(){}


    </script>





    <!-- additional header delegate control -->


    <SharePoint:DelegateControl runat="server" ControlId="AdditionalPageHead" AllowMultipleControls="true"/>





    <!-- additional header placeholder - overridden by asp:content on pages or page layouts -->


    <asp:ContentPlaceHolder id="PlaceHolderAdditionalPageHead" runat="server"/>




    <!-- microsoft says these should always be inside the head tag. -->


       <asp:ContentPlaceHolder id="PlaceHolderBodyAreaClass" runat ="server"/>


    <asp:ContentPlaceHolder id="PlaceHolderTitleAreaClass" runat ="server"/>


</head>




<body scroll="no" onload="javascript:_spBodyOnLoadWrapper();">




<form runat="server" onsubmit="return _spFormOnSubmitWrapper();">




<!-- handles SharePoint scripts -->


<asp:ScriptManager id="ScriptManager" runat="server" EnablePageMethods="false" EnablePartialRendering="true" EnableScriptGlobalization="false" EnableScriptLocalization="true" />




<!-- controls the web parts and zones -->


<WebPartPages:SPWebPartManager runat="server"/>




<!-- =====  Begin Ribbon ============================================================ -->




<div id="s4-ribbonrow" class="s4-pr s4-ribbonrowhidetitle">


    <div id="s4-ribboncont">





        <!-- ribbon starts here -->


        <SharePoint:SPRibbon


            runat="server"


            PlaceholderElementId="RibbonContainer"


            CssFile="">





            <!-- ribbon left side content starts here -->


            <SharePoint:SPRibbonPeripheralContent


                runat="server"


                Location="TabRowLeft"


                CssClass="ms-siteactionscontainer s4-notdlg">





                    <!-- site actions -->


                    <span class="ms-siteactionsmenu" id="siteactiontd">


                    <SharePoint:SiteActions runat="server" accesskey="<%$Resources:wss,tb_SiteActions_AK%>" id="SiteActionsMenuMain"


                        PrefixHtml=""


                        SuffixHtml=""


                        MenuNotVisibleHtml="&amp;nbsp;"


                        >


                        <CustomTemplate>


                        <SharePoint:FeatureMenuTemplate runat="server"


                            FeatureScope="Site"


                            Location="Microsoft.SharePoint.StandardMenu"


                            GroupId="SiteActions"


                            UseShortId="true"


                            >


                            <SharePoint:MenuItemTemplate runat="server" id="MenuItem_EditPage"


                                Text="<%$Resources:wss,siteactions_editpage%>"


                                Description="<%$Resources:wss,siteactions_editpagedescriptionv4%>"


                                ImageUrl="/_layouts/images/ActionsEditPage.png"


                                MenuGroupId="100"


                                Sequence="110"


                                ClientOnClickNavigateUrl="javascript:ChangeLayoutMode(false);"


                                />


                            <SharePoint:MenuItemTemplate runat="server" id="MenuItem_TakeOffline"


                                Text="<%$Resources:wss,siteactions_takeoffline%>"


                                Description="<%$Resources:wss,siteactions_takeofflinedescription%>"


                                ImageUrl="/_layouts/images/connecttospworkspace32.png"


                                MenuGroupId="100"


                                Sequence="120"


                                />


                            <SharePoint:MenuItemTemplate runat="server" id="MenuItem_CreatePage"


                                Text="<%$Resources:wss,siteactions_createpage%>"


                                Description="<%$Resources:wss,siteactions_createpagedesc%>"


                                ImageUrl="/_layouts/images/NewContentPageHH.png"


                                MenuGroupId="200"


                                Sequence="210"


                                UseShortId="true"


                                ClientOnClickScriptContainingPrefixedUrl="if (LaunchCreateHandler('Page')) { OpenCreateWebPageDialog('~site/_layouts/createwebpage.aspx') }"


                                PermissionsString="AddListItems, EditListItems"


                                PermissionMode="All" />


                            <SharePoint:MenuItemTemplate runat="server" id="MenuItem_CreateDocLib"


                                Text="<%$Resources:wss,siteactions_createdoclib%>"


                                Description="<%$Resources:wss,siteactions_createdoclibdesc%>"


                                ImageUrl="/_layouts/images/NewDocLibHH.png"


                                MenuGroupId="200"


                                Sequence="220"


                                UseShortId="true"


                                ClientOnClickScriptContainingPrefixedUrl="if (LaunchCreateHandler('DocLib')) { GoToPage('~site/_layouts/new.aspx?FeatureId={00bfea71-e717-4e80-aa17-d0c71b360101}&amp;ListTemplate=101') }"


                                PermissionsString="ManageLists"


                                PermissionMode="Any"


                                VisibilityFeatureId="00BFEA71-E717-4E80-AA17-D0C71B360101" />


                            <SharePoint:MenuItemTemplate runat="server" id="MenuItem_Create"


                                Text="<%$Resources:wss,siteactions_create%>"


                                Description="<%$Resources:wss,siteactions_createdesc%>"


                                MenuGroupId="200"


                                Sequence="240"


                                UseShortId="true"


                                ClientOnClickScriptContainingPrefixedUrl="if (LaunchCreateHandler('All')) { STSNavigate('~site/_layouts/create.aspx') }"


                                PermissionsString="ManageLists, ManageSubwebs"


                                PermissionMode="Any" />


                            <SharePoint:MenuItemTemplate runat="server" id="MenuItem_ViewAllSiteContents"


                                Text="<%$Resources:wss,quiklnch_allcontent%>"


                                Description="<%$Resources:wss,siteactions_allcontentdescription%>"


                                ImageUrl="/_layouts/images/allcontent32.png"


                                MenuGroupId="300"


                                Sequence="302"


                                UseShortId="true"


                                ClientOnClickNavigateUrl="~site/_layouts/viewlsts.aspx"


                                PermissionsString="ViewFormPages"


                                PermissionMode="Any" />


                             <SharePoint:MenuItemTemplate runat="server" id="MenuItem_EditSite"


                                Text="<%$Resources:wss,siteactions_editsite%>"


                                Description="<%$Resources:wss,siteactions_editsitedescription%>"


                                ImageUrl="/_layouts/images/SharePointDesigner32.png"


                                MenuGroupId="300"


                                Sequence="304"


                                UseShortId="true"


                                ClientOnClickScriptContainingPrefixedUrl="EditInSPD('~site/',true);"


                                PermissionsString="AddAndCustomizePages"


                                PermissionMode="Any"


                            />


                            <SharePoint:MenuItemTemplate runat="server" id="MenuItem_SitePermissions"


                                Text="<%$Resources:wss,people_sitepermissions%>"


                                Description="<%$Resources:wss,siteactions_sitepermissiondescriptionv4%>"


                                ImageUrl="/_layouts/images/Permissions32.png"


                                MenuGroupId="300"


                                Sequence="310"


                                UseShortId="true"


                                ClientOnClickNavigateUrl="~site/_layouts/user.aspx"


                                PermissionsString="EnumeratePermissions"


                                PermissionMode="Any" />


                            <SharePoint:MenuItemTemplate runat="server" id="MenuItem_Settings"


                                Text="<%$Resources:wss,settings_pagetitle%>"


                                Description="<%$Resources:wss,siteactions_sitesettingsdescriptionv4%>"


                                ImageUrl="/_layouts/images/settingsIcon.png"


                                MenuGroupId="300"


                                Sequence="320"


                                UseShortId="true"


                                ClientOnClickNavigateUrl="~site/_layouts/settings.aspx"


                                PermissionsString="EnumeratePermissions,ManageWeb,ManageSubwebs,AddAndCustomizePages,ApplyThemeAndBorder,ManageAlerts,ManageLists,ViewUsageData"


                                PermissionMode="Any" />


                            <SharePoint:MenuItemTemplate runat="server" id="MenuItem_CommitNewUI"


                                Text="<%$Resources:wss,siteactions_commitnewui%>"


                                Description="<%$Resources:wss,siteactions_commitnewuidescription%>"


                                ImageUrl="/_layouts/images/visualupgradehh.png"


                                MenuGroupId="300"


                                Sequence="330"


                                UseShortId="true"


                                ClientOnClickScriptContainingPrefixedUrl="GoToPage('~site/_layouts/prjsetng.aspx')"


                                PermissionsString="ManageWeb"


                                PermissionMode="Any"


                                ShowOnlyIfUIVersionConfigurationEnabled="true" />


                            <SharePoint:MenuItemTemplate runat="server" id="MenuItem_AddPages"


                                Text="<%$Resources:wss,siteactions_addpages%>"


                                Description="<%$Resources:wss,siteactions_addpagesdescription%>"


                                MenuGroupId="400"


                                Sequence="410"


                                UseShortId="true"


                                ClientOnClickScript = "javascript:MtgTlPart_ShowToolPane('1');"


                                PermissionsString="AddAndCustomizePages"


                                PermissionMode="Any" />


                            <SharePoint:MenuItemTemplate runat="server" id="MenuItem_ManagePages"


                                Text="<%$Resources:wss,siteactions_managepages%>"


                                Description="<%$Resources:wss,siteactions_managepagesdescription%>"


                                MenuGroupId="400"


                                Sequence="420"


                                UseShortId="true"


                                ClientOnClickScript = "javascript:MtgTlPart_ShowToolPane('2');"


                                PermissionsString="AddAndCustomizePages"


                                PermissionMode="Any" />


                        </SharePoint:FeatureMenuTemplate>


                        </CustomTemplate>


                      </SharePoint:SiteActions></span>





              <!-- global navigation dhtml popout menu -->


              <asp:ContentPlaceHolder id="PlaceHolderGlobalNavigation" runat="server">


                    <SharePoint:PopoutMenu


                        runat="server"


                        ID="GlobalBreadCrumbNavPopout"


                        IconUrl="/_layouts/images/fgimg.png"


                        IconAlt="<%$Resources:wss,master_breadcrumbIconAlt%>"


                        IconOffsetX=0


                        IconOffsetY=112


                        IconWidth=16


                        IconHeight=16


                        AnchorCss="s4-breadcrumb-anchor"


                        AnchorOpenCss="s4-breadcrumb-anchor-open"


                        MenuCss="s4-breadcrumb-menu">


                        <div class="s4-breadcrumb-top">


                            <asp:Label runat="server" CssClass="s4-breadcrumb-header" Text="<%$Resources:wss,master_breadcrumbHeader%>" />


                        </div>


                        <asp:ContentPlaceHolder id="PlaceHolderTitleBreadcrumb" runat="server">


                            <SharePoint:ListSiteMapPath


                                runat="server"


                                SiteMapProviders="SPSiteMapProvider,SPContentMapProvider"


                                RenderCurrentNodeAsLink="false"


                                PathSeparator=""


                                CssClass="s4-breadcrumb"


                                NodeStyle-CssClass="s4-breadcrumbNode"


                                CurrentNodeStyle-CssClass="s4-breadcrumbCurrentNode"


                                RootNodeStyle-CssClass="s4-breadcrumbRootNode"


                                NodeImageOffsetX=0


                                NodeImageOffsetY=353


                                NodeImageWidth=16


                                NodeImageHeight=16


                                NodeImageUrl="/_layouts/images/fgimg.png"


                                RTLNodeImageOffsetX=0


                                RTLNodeImageOffsetY=376


                                RTLNodeImageWidth=16


                                RTLNodeImageHeight=16


                                RTLNodeImageUrl="/_layouts/images/fgimg.png"


                                HideInteriorRootNodes="true"


                                SkipLinkText="" />


                        </asp:ContentPlaceHolder>


                    </SharePoint:PopoutMenu>


                </asp:ContentPlaceHolder>





            <!-- save button at top of ribbon -->


            <SharePoint:PageStateActionButton id="PageStateActionButton" runat="server" Visible="false" /></SharePoint:SPRibbonPeripheralContent>





            <!-- ribbon right side content starts here -->


            <SharePoint:SPRibbonPeripheralContent


                runat="server"


                Location="TabRowRight"


                ID="RibbonTabRowRight"


                CssClass="s4-trc-container s4-notdlg">





                <!-- GlobalSiteLink0 delegate - the variation selector / shows nothing by default otherwise -->


                <SharePoint:DelegateControl runat="server" ID="GlobalDelegate0" ControlId="GlobalSiteLink0" />





                <!-- Welcome / Login control -->


                <div class="s4-trc-container-menu">


                     <div>


                        <wssuc:Welcome id="IdWelcome" runat="server" EnableViewState="false">


                        </wssuc:Welcome>


                        <!-- MultiLingual User Interface menu -->


                        <wssuc:MUISelector ID="IdMuiSelector" runat="server"/>


                    </div>


                </div>





                <!-- GlobalSiteLink2 delegate default shows nothing -->


                <SharePoint:DelegateControl ControlId="GlobalSiteLink2" ID="GlobalDelegate2" Scope="Farm" runat="server" />





                <!-- link to launch developer dashboard if its activated by admin -->


                <span>


                    <span class="s4-devdashboard">


                    <Sharepoint:DeveloperDashboardLauncher


                        ID="DeveloperDashboardLauncher"


                        NavigateUrl="javascript:ToggleDeveloperDashboard()"


                        runat="server"


                        ImageUrl="/_layouts/images/fgimg.png"


                        Text="<%$Resources:wss,multipages_launchdevdashalt_text%>"


                        OffsetX=0


                        OffsetY=222


                        Height=16


                        Width=16 />


                    </span>


                </span>


            </SharePoint:SPRibbonPeripheralContent>


      </SharePoint:SPRibbon>





      <!-- end main ribbon control -->


    </div>




    <!-- dynamic notification area -->


    <div id="notificationArea" class="s4-noti"></div>




    <!-- old navigation delegate? -->


    <asp:ContentPlaceHolder ID="SPNavigation" runat="server">


            <SharePoint:DelegateControl runat="server" ControlId="PublishingConsole" Id="PublishingConsoleDelegate">


           </SharePoint:DelegateControl>


    </asp:ContentPlaceHolder>





    <!-- top web part panel -->


    <div id="WebPartAdderUpdatePanelContainer">


        <asp:UpdatePanel


            ID="WebPartAdderUpdatePanel"


            UpdateMode="Conditional"


            ChildrenAsTriggers="false"


            runat="server">


            <ContentTemplate>


                <WebPartPages:WebPartAdder ID="WebPartAdder" runat="server" />


            </ContentTemplate>


            <Triggers>


                <asp:PostBackTrigger ControlID="WebPartAdder" />


            </Triggers>


        </asp:UpdatePanel>


    </div>


</div>




<!-- =====  End Ribbon and other Top Content ============================================================ -->






<!-- =====  Start Scrolling Body Area ============================================================ -->




<!-- these two div id's are used to setup the main scrolling page area, they should stay if you are sticking the ribbon to the top -->


<div ID="s4-workspace" class="s4-nosetwidth">  <!-- NOTE: s4-nosetwidth is used when you are setting a fixed page width in css, remove for 100% -->


  <div ID="s4-bodyContainer">





  <!-- id="mso_contentdiv" required, helps SharePoint put the web part editing pane in the main body on the right, you can move the ID if needed -->


  <div id="MSO_ContentDiv" runat="server">




    <!-- link back to homepage, SiteLogoImage gets replaced by the Site Icon, you can hard code this so that its not overridden by the Site Icon or even remove -->


    <div class="s4-notdlg"><!-- NOTE: any time you see s4-notdlg, this element will be hidden from SharePoint dialog windows  -->


        <SharePoint:SPLinkButton runat="server" NavigateUrl="~sitecollection/">


            <SharePoint:SiteLogoImage  LogoImageUrl="/Style Library/sitename/logo.png" runat="server"/>


        </SharePoint:SPLinkButton>


    </div>





    <!-- search box loads from delegate, style with CSS -->


    <div class="s4-notdlg">


        <asp:ContentPlaceHolder id="PlaceHolderSearchArea" runat="server">


            <SharePoint:DelegateControl runat="server" ControlId="SmallSearchInputBox" Version="4"/>


        </asp:ContentPlaceHolder>


    </div>





    <!-- web part menu for meeting workspace only -->


    <div class="s4-notdlg">


        <Meetings:CustomToolPaneManager runat="server" __MarkupType="vsattributemarkup" WebPart="true" Height="" Width="" __WebPartId="{835267A9-C9F3-452F-BC2C-E90E9B468005}" id="g_835267a9_c9f3_452f_bc2c_e90e9b468005"/>


        <Meetings:PropertyBag runat="server"/>


    </div>




    <!-- top navigation area -->


    <div class="s4-notdlg">


        <!-- top navigation menu (set to use the new Simple Rendering) -->


        <SharePoint:AspMenu


          ID="TopNavigationMenuV4"


          Runat="server"


          EnableViewState="false"


          DataSourceID="topSiteMap"


          AccessKey="<%$Resources:wss,navigation_accesskey%>"


          UseSimpleRendering="true"


          UseSeparateCss="false"


          Orientation="Horizontal"


          StaticDisplayLevels="2"


          MaximumDynamicDisplayLevels="1"


          SkipLinkText=""


          CssClass="s4-tn"/>





        <SharePoint:DelegateControl runat="server" ControlId="TopNavigationDataSource" Id="topNavigationDelegate">


            <Template_Controls>


                <asp:SiteMapDataSource


                  ShowStartingNode="False"


                  SiteMapProvider="SPNavigationProvider"


                  id="topSiteMap"


                  runat="server"


                  StartingNodeUrl="sid:1002"/>


            </Template_Controls>


        </SharePoint:DelegateControl>





    </div>




    <!-- page editing status bar -->


    <div class="s4-notdlg">


        <div id="s4-statusbarcontainer" class="s4-notdlg">


            <div id="pageStatusBar" class="s4-status-s1"></div>


        </div>


    </div>




    <!-- styles needed to have left nav to the left of the main area -->


    <div id="s4-leftpanel" class="s4-notdlg">


        <!-- The quick launch bar / left navigation -->


        <asp:ContentPlaceHolder id="PlaceHolderLeftNavBar" runat="server">


            <asp:SiteMapDataSource


                SiteMapProvider="SPNavigationProvider"


                ShowStartingNode="False"


                id="QuickLaunchSiteMap"


                StartingNodeUrl="sid:1025"


                runat="server"


            />


          <SharePoint:AspMenu


              id="V4QuickLaunchMenu"


              runat="server"


              EnableViewState="false"


              DataSourceId="QuickLaunchSiteMap"


              UseSimpleRendering="true"


              UseSeparateCss="false"


              Orientation="Vertical"


              StaticDisplayLevels="2"


              MaximumDynamicDisplayLevels="0"


              SkipLinkText=""


              CssClass="s4-ql" />


        </asp:ContentPlaceHolder>





        <!-- The small menu attached Quick Launch bar. Used only on very specific pages -->


        <asp:ContentPlaceHolder id="PlaceHolderLeftActions" runat ="server"/>


    </div>





    <!-- s4-ca is the main body div -->


    <div class="s4-ca">




        <div class="s4-notdlg">


            <!-- page title -->


            <asp:ContentPlaceHolder id="PlaceHolderPageTitleInTitleArea" runat="server" />


        </div>





        <!-- place a table around this to handle funky markup in _Layouts/areacachesettings.aspx (if you want) -->


        <asp:ContentPlaceHolder id="PlaceHolderPageDescription" runat="server" />





        <div>


            <!-- page content loads from the pages and pages layout -->


            <asp:ContentPlaceHolder id="PlaceHolderMain" runat="server"/>


        </div>


    </div>




    <!-- footer - this is purely optional -->


    <div class="s4-notdlg" style="clear: both;">


        &copy; Copyright 2010 SiteName


    </div>




    <!-- the developer dashboard can be turned on by administrators and shows debuging and performance info for the page -->


    <div id="DeveloperDashboard" class="ms-developerdashboard">


        <SharePoint:DeveloperDashboard runat="server"/>


    </div>




  </div>


  </div>


</div>




<!-- =====  End scrolling body area with these two previous div's ============================================================ -->




<!-- The form digest security control used to for security validation on forms -->


<asp:ContentPlaceHolder id="PlaceHolderFormDigest" runat="server">


    <SharePoint:FormDigest runat="server"/>


</asp:ContentPlaceHolder>




<!-- =====  Hidden Placeholders ============================================================ -->


<asp:Panel visible="false" runat="server">





   <!-- =====  These placeholders don't output anything very often OOTB ========== -->


    <!-- The navigation menu that is inside the top navigation bar. -->


    <asp:ContentPlaceHolder id="PlaceHolderHorizontalNav" runat="server"/>


    <!-- The top navigation where GlobalNavigationSiteMap is contained. Gets overridden by default. V4 uses it to change the top nav -->


    <asp:ContentPlaceHolder id="PlaceHolderTopNavBar" runat="server"/>


    <!-- The top of the Quick Launch menu. -->


    <asp:ContentPlaceHolder id="PlaceHolderQuickLaunchTop" runat="server"/>


    <!-- The bottom of the Quick Launch menu. -->


    <asp:ContentPlaceHolder id="PlaceHolderQuickLaunchBottom" runat="server"/>


    <!-- The placement of the data source used to populate the left navigation bar. -->


    <asp:ContentPlaceHolder id="PlaceHolderLeftNavBarDataSource" runat="server" />


    <!-- The date picker used when a calendar is visible on the page. -->


    <asp:ContentPlaceHolder id="PlaceHolderCalendarNavigator" runat ="server" />


    <!-- The top section of the left navigation bar. -->


    <asp:ContentPlaceHolder id="PlaceHolderLeftNavBarTop" runat="server" />


    <!-- used to override the global sitemap? -->


    <asp:ContentPlaceHolder id="PlaceHolderGlobalNavigationSiteMap" runat="server" />





   <!-- =====  These placeholders does not appear as part of the 2010 UI but must be present for backward compatibility. ========== -->


    <!-- The name of the site where the current page resides. -->


    <asp:ContentPlaceHolder id="PlaceHolderSiteName" runat="server"/>


    <!-- Page icon in the upper-left area of the page -->


    <asp:ContentPlaceHolder ID="PlaceHolderPageImage" runat="server"/>


    <!-- Left border of the title area -->


    <asp:ContentPlaceHolder ID="PlaceHolderTitleLeftBorder" runat="server"/>


    <!-- mini console - supplementary buttons for pages like the wiki / history / incoming links -->


    <asp:ContentPlaceHolder id="PlaceHolderMiniConsole" runat="server"/>


    <!-- Right margin of the title area -->


    <asp:ContentPlaceHolder id="PlaceHolderTitleRightMargin" runat="server"/>


    <!-- Left border of the title area -->


    <asp:ContentPlaceHolder ID="PlaceHolderTitleAreaSeparator" runat="server"/>


    <!-- The width of the left navigation area -->


    <asp:ContentPlaceHolder ID="PlaceHolderNavSpacer" runat="server"/>


    <asp:ContentPlaceHolder id="PlaceHolderLeftNavBarBorder" runat="server"/>


    <!-- Border element for the main page body -->


    <asp:ContentPlaceHolder ID="PlaceHolderBodyLeftBorder" runat="server"/>


    <!-- Right margin of the main page body -->


    <asp:ContentPlaceHolder id="PlaceHolderBodyRightMargin" runat="server" />





</asp:Panel>




<!-- Handle Search "enter" key and back button -->


<input type="text" name="__spDummyText1" style="display:none;" size="1"/>


<input type="text" name="__spDummyText2" style="display:none;" size="1"/>




</form>




<!-- extra form for some instances -->


<asp:ContentPlaceHolder id="PlaceHolderUtilityContent" runat="server" />




<!-- warn users of old browsers that they need to upgrade -->


<SharePoint:WarnOnUnsupportedBrowsers runat="server"/>




<!-- Starter Master Page by Randy Drisgill (http://blog.drisgill.com) - May 23, 2010 -->


<!-- Remove this credit if you want, but if you leave it in I will appreciate it! -->


</body>


</html>









- Step 5

We are almost there… now rename the the sample.txt file to netsourcecode.master , go to feature1 and rename it to MasterPageFeature now your project should look like this:






- Step 6

Go to MasterPageFeature right click and “add event receiver”, go to the MasterPageFeature.EventReceiver.cs file double click and add these events (notice you have 4 events commented, in this case we are only focus in two)


    public override void FeatureActivated(SPFeatureReceiverProperties properties)


        {


            SPWeb currentWeb = (SPWeb)properties.Feature.Parent;




            currentWeb.MasterUrl = "/_catalogs/masterpage/netsourcecode.master";


            currentWeb.CustomMasterUrl = "/_catalogs/masterpage/netsourcecode.master";


            currentWeb.Update();




        }




        public override void FeatureDeactivating(SPFeatureReceiverProperties properties)


        {


            SPWeb currentWeb = (SPWeb)properties.Feature.Parent;




            currentWeb.MasterUrl = "/_catalogs/masterpage/nightandday.master";


            currentWeb.CustomMasterUrl = "/_catalogs/masterpage/nightandday.master";


            currentWeb.Update();




        }




















Posted by



at







































No comments:















Post a Comment






























Subscribe to:
Post Comments (Atom)
